Mechanical ItemsProduct ID: 1

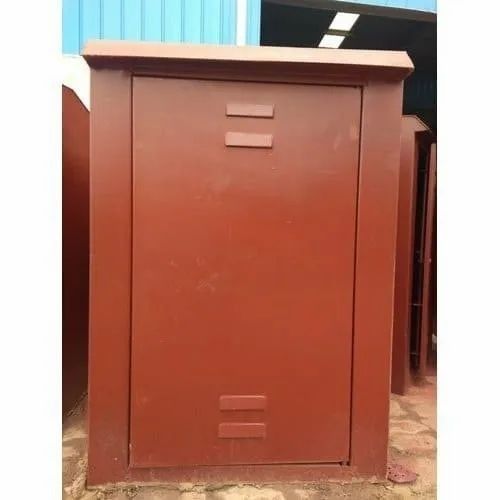

Apparatus Case
Apparatus cases, also known as location boxes, provide an enclosure for railway signalling equipment. Available in RE, GKP and SER variants for project-specific requirements.
Available variants
- RE
- GKP
- SER
Project-specific configurations reviewed against the enquiry
Inspection and documentation scope agreed before supply
Availability and supply remain subject to the latest approved drawing, specification, quantity and commercial terms.
Product information
Apparatus Case details and technical considerations
Application and project context
An apparatus case, also referred to as a location box, provides an enclosure for railway signalling equipment installed at a defined site location. The enclosure arrangement must match the equipment layout, cable interfaces and environmental protection requirements stated in the project documents.
Configuration and selection
Confirm whether the requirement is for the RE, GKP or SER variant and identify the controlling drawing. Include overall dimensions, internal mounting arrangement, cable-entry details, material, finish, doors, locking and supplied accessories wherever these are defined by the project.
RFQ and inspection inputs
Use the controlled project documents to define the supply boundary. A complete enquiry helps align manufacturing, inspection, packing and delivery expectations before commercial quotation.
- Product quantity and required delivery location
- Approved drawing or specification with revision status
- Material, finish, interfaces, accessories and configuration
- Inspection, documentation, packing and delivery requirements
Prepare the enquiry
What to include in an RFQ for Apparatus Case
Clear technical and delivery inputs reduce assumptions and help define a useful quotation boundary.
Configuration
Confirm dimensions, material, finish, interfaces, accessories and the required product variant.
Inspection scope
State inspection, testing, documentation and acceptance requirements before quotation.
Quantity and delivery
Include the quantity, project location, packing expectations and required delivery schedule.
Buyer guidance
Before specifying Apparatus Case
Common questions
Apparatus Case FAQs
What is Apparatus Case used for?
Apparatus cases, also known as location boxes, provide an enclosure for railway signalling equipment. Available in RE, GKP and SER variants for project-specific requirements.
Which variants are available?
The listed variants are RE, GKP, SER. Confirm the required configuration against the current project drawing and specification.
Can this product be supplied to a project drawing?
Share the controlling drawing and revision with the enquiry. Principal Vinimay will review the configuration, manufacturing scope and any exclusions before quotation.
What should the quotation request include?
Include quantity, drawing or specification, variant, material and finish, inspection requirements, project location and delivery schedule.
