Mechanical ItemsProduct ID: 17

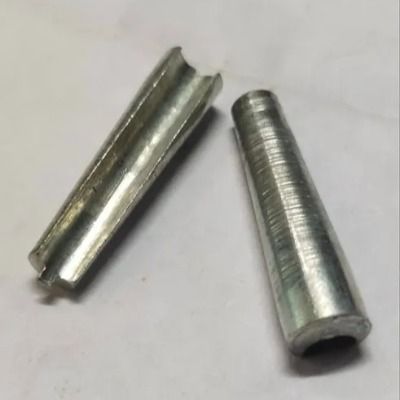

Channel Pin
Channel pins for fastening and alignment in railway signalling and mechanical installation work. Contact Principal Vinimay for project requirements.
Project-specific configurations reviewed against the enquiry
Inspection and documentation scope agreed before supply
Availability and supply remain subject to the latest approved drawing, specification, quantity and commercial terms.
Product information
Channel Pin details and technical considerations
Application and project context
Channel pins provide fastening or alignment at a defined interface in railway signalling and mechanical installation work. The pin must match the mating channel, hole and retention arrangement shown on the project drawing.
Configuration and selection
Include the pin drawing, diameter and length, material, finish, head or retention details, tolerances where specified and quantity. Confirm whether washers, clips or other mating hardware are included in the requested supply.
RFQ and inspection inputs
Use the controlled project documents to define the supply boundary. A complete enquiry helps align manufacturing, inspection, packing and delivery expectations before commercial quotation.
- Product quantity and required delivery location
- Approved drawing or specification with revision status
- Material, finish, interfaces, accessories and configuration
- Inspection, documentation, packing and delivery requirements
Prepare the enquiry
What to include in an RFQ for Channel Pin
Clear technical and delivery inputs reduce assumptions and help define a useful quotation boundary.
Configuration
Confirm dimensions, material, finish, interfaces, accessories and the required product variant.
Inspection scope
State inspection, testing, documentation and acceptance requirements before quotation.
Quantity and delivery
Include the quantity, project location, packing expectations and required delivery schedule.
Buyer guidance
Before specifying Channel Pin
Common questions
Channel Pin FAQs
What is Channel Pin used for?
Channel pins for fastening and alignment in railway signalling and mechanical installation work. Contact Principal Vinimay for project requirements.
Which variants are available?
Configuration is reviewed against the applicable project drawing, dimensions, material, interfaces and supply requirements.
Can this product be supplied to a project drawing?
Share the controlling drawing and revision with the enquiry. Principal Vinimay will review the configuration, manufacturing scope and any exclusions before quotation.
What should the quotation request include?
Include quantity, drawing or specification, variant, material and finish, inspection requirements, project location and delivery schedule.
