Mechanical ItemsProduct ID: 10

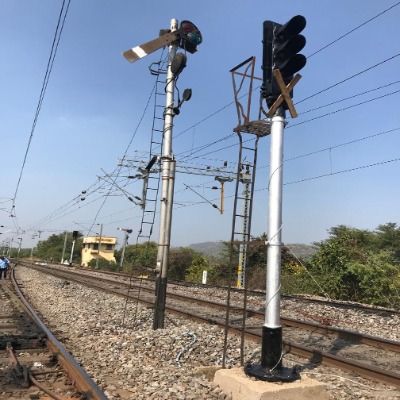

Signal Unit Complete
Complete signal unit assemblies for railway signalling installations, available in 3.5 metre, 4.5 metre and 5.5 metre configurations.
Available variants
- 3.5 Meter
- 4.5 Meter
- 5.5 Meter
Project-specific configurations reviewed against the enquiry
Inspection and documentation scope agreed before supply
Availability and supply remain subject to the latest approved drawing, specification, quantity and commercial terms.
Product information
Signal Unit Complete details and technical considerations
Application and project context
A complete signal unit combines the specified structural and signalling items into an assembly for installation at a defined railway signal location. Listed configurations include 3.5 metre, 4.5 metre and 5.5 metre arrangements.
Configuration and selection
Confirm the required height, signal and aspect arrangement, applicable assembly drawing, foundation and mounting interfaces, included accessories, material and finish, identification, inspection and packing. Clearly define which electrical or optical items fall within the requested supply boundary.
RFQ and inspection inputs
Use the controlled project documents to define the supply boundary. A complete enquiry helps align manufacturing, inspection, packing and delivery expectations before commercial quotation.
- Product quantity and required delivery location
- Approved drawing or specification with revision status
- Material, finish, interfaces, accessories and configuration
- Inspection, documentation, packing and delivery requirements
Prepare the enquiry
What to include in an RFQ for Signal Unit Complete
Clear technical and delivery inputs reduce assumptions and help define a useful quotation boundary.
Configuration
Confirm dimensions, material, finish, interfaces, accessories and the required product variant.
Inspection scope
State inspection, testing, documentation and acceptance requirements before quotation.
Quantity and delivery
Include the quantity, project location, packing expectations and required delivery schedule.
Buyer guidance
Before specifying Signal Unit Complete
Common questions
Signal Unit Complete FAQs
What is Signal Unit Complete used for?
Complete signal unit assemblies for railway signalling installations, available in 3.5 metre, 4.5 metre and 5.5 metre configurations.
Which variants are available?
The listed variants are 3.5 Meter, 4.5 Meter, 5.5 Meter. Confirm the required configuration against the current project drawing and specification.
Can this product be supplied to a project drawing?
Share the controlling drawing and revision with the enquiry. Principal Vinimay will review the configuration, manufacturing scope and any exclusions before quotation.
What should the quotation request include?
Include quantity, drawing or specification, variant, material and finish, inspection requirements, project location and delivery schedule.
