Mechanical ItemsProduct ID: 6

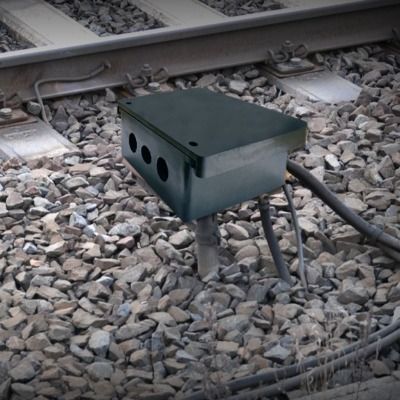

TLJB Junction Box
TLJB stands for Track Lead Junction Box. It provides a protected trackside connection point for railway signalling cables, terminations and associated circuit interfaces.
Project-specific configurations reviewed against the enquiry
Inspection and documentation scope agreed before supply
Availability and supply remain subject to the latest approved drawing, specification, quantity and commercial terms.
Product information
TLJB Junction Box details and technical considerations
TLJB full form and railway application
TLJB commonly stands for Track Lead Junction Box in railway signalling. It provides a protected trackside connection point for field cables, terminations and the interfaces defined by the applicable signalling circuit and project drawing.
Where a TLJB is used
A TLJB is used where trackside cables need an accessible, protected and clearly identified termination or connection point. Its exact location, circuit role and interfaces are determined by the approved signalling design rather than by the enclosure name alone.
Configuration and selection inputs
Define the enclosure construction from the controlled drawing and specification. Important inputs include:
- Approved TLJB drawing and current revision
- Cable-entry count, size, position and sealing arrangement
- Terminal, internal wiring and identification requirements
- Material, finish, mounting, earthing and supplied accessories
- Environmental, inspection, testing and documentation requirements
What to send with a TLJB quotation request
Share the required quantity, approved drawing or specification, terminal and cable-entry arrangement, project location, inspection scope and delivery schedule. These details allow the manufacturing boundary and commercial quotation to be reviewed without relying on assumptions.
Prepare the enquiry
What to include in an RFQ for TLJB Junction Box
Clear technical and delivery inputs reduce assumptions and help define a useful quotation boundary.
Configuration
Confirm dimensions, material, finish, interfaces, accessories and the required product variant.
Inspection scope
State inspection, testing, documentation and acceptance requirements before quotation.
Quantity and delivery
Include the quantity, project location, packing expectations and required delivery schedule.
Buyer guidance
Before specifying TLJB Junction Box
Railway signalling RFQ checklist
Prepare quantities, drawings, material, inspection and delivery requirements before requesting a quotation.
How to specify a TLJB for procurement
Review the drawing, enclosure, cable-entry, terminal, inspection and documentation inputs needed for a useful TLJB enquiry.
TLJB installation and inspection checklist
Check identification, mounting, cable entries, terminations, sealing, earthing and inspection records before acceptance.
Common questions
TLJB Junction Box FAQs
What is the full form of TLJB in railway signalling?
TLJB commonly means Track Lead Junction Box. It provides a protected trackside connection point between field cables and the applicable signalling circuit or equipment arrangement.
What is a TLJB used for in railway projects?
A TLJB protects cable terminations and connections at the trackside. Its terminals, cable entries, mounting and enclosure construction must follow the approved project drawing and specification.
Is every railway junction box a TLJB?
No. Junction boxes can serve different circuits and locations. The approved designation, drawing, terminal arrangement and cable-entry schedule determine whether a box is a TLJB and what it must contain.
What information is needed for a TLJB quotation?
Provide the quantity, approved drawing and revision, cable-entry and terminal arrangement, material and finish, mounting details, inspection requirements, project location and delivery schedule.
